Wheel terms

OFFSET

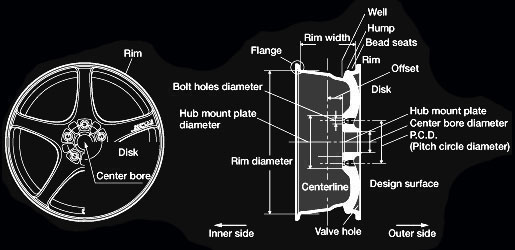

The offset indicates the distance from the center of the rim to the attaching disk part (unit:m/m). As seen in the attached drawing, the offset is indicated by "+" when the fitting surface extends beyond the central line of the rim and "-" when it is falls within. Caution is required to prevent the tire from coming into contact with the fender of the vehicle or the brake caliper if the offsets are very different.

PCD
The number of bolts used to install a wheel varies from 4 to 6 depending on the vehicle model (except for some vehicle types), thus the wheel to be installed should also possess the same number of hub bolt holes. P.C.D. stands for pitch circle diameter, and indicates the diameter of the circle in mm connecting the center of each hub bolt. Since the P.C.D. also varies according to the vehicle model, make sure a suitable one is selected.
