Tire Pressure Monitoring Sensor (TPMS) Mounting Solutions

Tire Pressure Sensor Monitoring (TPMS) Mount - Straps and Cradles to Mount TPMS on Sale at UpgradeMotoring.com

Tire Pressure Monitoring Sensor - TPMS - Mounting Strap with Cradle

Tire Pressure Monitoring Sensor (TPMS) Mounting Strap and Cradle- Set of four. The TPMS strap is made from 304 stainless steel. The strap exceeds all OEM torque specifications. Fits on wheels from 13 inch to 26 inch in diameter. These TPMS straps are easy to use. Just fit around drop center of the wheel, cut off excess material, slide on OE bracket or use our TPMS bracket, and just tighten with a screwdriver. TPMS Cradle is adjustable to accommodate different valve stem angles. Sold in a set of four TPMS adjustable straps and four TPMS cradles. TPMS not included. TPMS Sold separately, please call for more information. TPMS Strap and Cradle Kit on Sale now for $69.99/set of four. BUY NOW!


TPMS 90 degree valve stem adapter from UpgradeMotoring.com

Tire Pressure Sensor 90 degree Valve Stem Adapter

Tire Pressure Monitoring Sensor Valve Stem - 90 degree angle Valve Stem with TPMS Mounting Loop. This TPMS adapter is typically designed for use on multi piece wheels (excluding reverse wheels) with 90 degree standard diameter valve stems. Valve stem must be located in the tire drop in zone of the rim. TPMS must have an adjustable angle valve stem. Loop hole diameter is 10mm. Overall length is ~96mm. Inside of 90 degree bend to end of valve stem with cap is ~84mm. Tire pressure sensors not included. Tire pressure sensors sold separately, please call for more information. On Sale now for $25.00 each. BUY NOW!


TPMS Staight Valve Stem Adapter from UpgradeMotoring.com

Tire Pressure Sensor Straight Valve Stem Adapter

Tire Pressure Monitoring Sensor Valve Stem - Straight with TPMS Mounting Loop. This TPMS adapter is typically designed for use on one piece wheels (excluding reverse wheels) with straight standard diameter valve stems. Valve stem must be located in the tire drop in zone of the rim. TPMS must have an adjustable angle valve stem. One 11mm diameter and one 15mm diameter rubber grommets included. Grommet diameter determined by valve stem hole size. Loop hole diameter is 10mm. Overall Length with TPMS Loop is 60mm. Tire pressure sensors not included. Tire pressure sensors sold separately, please call for more information. On Sale now for $20.00 each. BUY NOW!


Tire Pressure Sensor Mounting Loop from UpgradeMotoring.com

Tire Pressure Monitoring Sensor - Valve Stem Adapter Loop

This Tire Pressure Monitoring Sensor (TPMS) Adapter Loop screws onto bottom of a valve stem. Existing valve stem must unscrew from the inside tire side. Valve stem must also be located in the tire drop in zone of the rim. TPMS must have an adjustable angle valve stem. Will mount in to standard valve stem thread pitch. Actual item may differ from picture, set screw not included. TPMS also tightens onto loop. TPMS hole is 10mm in diameter. Tire pressure sensors not included. Tire pressure sensors sold separately, please call for more information. On Sale now for $15.00 each. Sold Out!

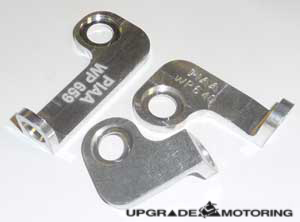

Piaa TPMS Valve Stem Mounting Bracket - CNC Aluminum Mounting Bracket

Piaa TPMS aluminum brackets are CNC Machined. The Piaa TPMS brackets are designed to position the tire pressure sensor in the drop in area on the rim. Measure the distance from the valve stem mounting hole to the tire drop in area to determine the proper size bracket. Quantity discounts available.

Part #

TPMS Bracket Size

Regular Price Each On Sale!
WP626 26mm Piaa Tire Pressure Monitoring Sensor Bracket (TPMS) - Extra Small - Each $42.00 On Sale!
WP640 40mm Piaa Tire Pressure Monitoring Sensor Bracket (TPMS) - Small - Each $42.00 On Sale!
WP659 59mm Piaa Tire Pressure Monitoring Sensor Bracket (TPMS) - Medium - Each $42.00 On Sale!
WP664 64mm Piaa Tire Pressure Monitoring Sensor Bracket (TPMS) - Large - Each $42.00 On Sale!

Please contact us for Piaa Wheel TPMS Bracket Fitments. Piaa TPMS Brackets are not compatible with all non-Piaa stem grommets.
