Mikuni 40 PHH / 44 PHH Performance Side Draft Carburetor Jet Sizing Chart
Upgrade Motoring has a Stockpile of Thousands of Genuine Automotive Mikuni Performance Carburetor Replacement Parts and Jets! We Ship Mikuni PHH Car Carburetor Parts Worldwide! Most Orders Ship Same Day or Next Day! We Are Located Just a Few Minutes Away From The Mikuni USA Headquarters! You Can Now Use www.MikuniParts.com to Access Our Mikuni Car Carburetor Parts Page Quickly! You Can Purchase Genuine Mikuni 40 PHH / 44 PHH / 50 PHH Carburetor Parts Securely With Our Online Mikuni Parts Shopping Cart!
Genuine Mikuni Parts also fit some Mikuni Solex OEM Carburetors. Some PHH 40 Mikuni Solex applications use PHH 44 Performance Carburetor parts. Please compare images of parts for confirmation of application prior to ordering.
| Mikuni 40 PHH / 44 PHH Performance Carburetor Jetting Kits | |
| Mikuni 40 PHH Performance Carburetor - 4 cyl Jetting Kit #Z70/161 - BUY NOW! | Mikuni 44 PHH Performance Carburetor - 4 cyl Jetting Kit #Z70/163 - BUY NOW! |
| Mikuni 40 PHH Performance Carburetor - 6 cyl Jetting Kit #Z70/162 - BUY NOW! | Mikuni 44 PHH Performance Carburetor - 6 cyl Jetting Kit #Z70/164 - BUY NOW! |
| Mikuni Carburetor Jetting Box - 18 Adjustable Slots - 7x4x1.5" - #KHS-024 BUY NOW! | |

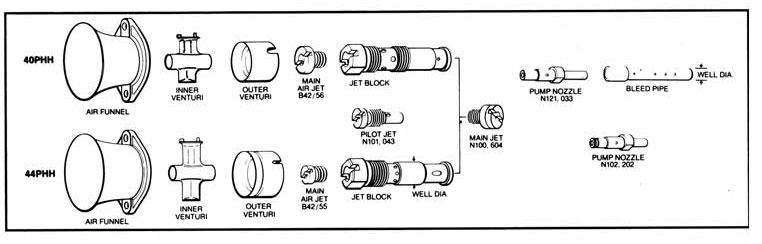

| Mikuni PHH Performance Carburetor Jetting Parts - 40 PHH, 44 PHH | ||||||
| Description | Part Number | Available Sizes | 40PHH - 97, 98 | 44PHH - 41, 42 | Buy Now! | |

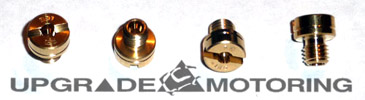

| Mikuni Solex 40 PHH / 44 PHH Carburetor - Main Jet (Fuel Jet) - Item #27 - Sizing |
||||||
| The Mikuni Main Jet (Fuel Jet) is for metering the amount of fuel required for medium and high speed driving, acceleration, as well as for climbing a slope. Two Main Jets required per carburetor. | ||||||
 |
||||||
| Mikuni Main Jet (Item #27) | N100.604-(Size) | 50-210 (increments of 2.5), 210-250 (increments of 10) | 40PHH | 44PHH | ||
| Mikuni Main Jet | N100.604-50 | 50 | X | X | Call | |
| Mikuni Main Jet | N100.604-52.5 | 52.5 | X | X | ||
| Mikuni Main Jet | N100.604-55 | 55 | X | X | ||
| Mikuni Main Jet | N100.604-57.5 | 57.5 | X | X | ||
| Mikuni Main Jet | N100.604-60 | 60 | X | X | ||
| Mikuni Main Jet | N100.604-62.5 | 62.5 | X | X | ||
| Mikuni Main Jet | N100.604-65 | 65 | X | X | ||
| Mikuni Main Jet | N100.604-67.5 | 67.5 | X | X | ||
| Mikuni Main Jet | N100.604-70 | 70 | X | X | ||
| Mikuni Main Jet | N100.604-72.5 | 72.5 | X | X | ||
| Mikuni Main Jet | N100.604-75 | 75 | X | X | ||
| Mikuni Main Jet | N100.604-77.5 | 77.5 | X | X | ||
| Mikuni Main Jet | N100.604-80 | 80 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-82.5 | 82.5 | X | X | ||
| Mikuni Main Jet | N100.604-85 | 85 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-87.5 | 87.5 | X | X | ||
| Mikuni Main Jet | N100.604-90 | 90 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-92.5 | 92.5 | X | X | ||
| Mikuni Main Jet | N100.604-95 | 95 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-97.5 | 97.5 | X | X | ||
| Mikuni Main Jet | N100.604-100 | 100 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-102.5 | 102.5 | X | X | ||
| Mikuni Main Jet | N100.604-105 | 105 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-107.5 | 107.5 | X | X | ||
| Mikuni Main Jet | N100.604-110 | 110 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-112.5 | 112.5 | X | X | ||
| Mikuni Main Jet | N100.604-115 | 115 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-117.5 | 117.5 | X | X | ||
| Mikuni Main Jet | N100.604-120 | 120 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-122.5 | 122.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-125 | 125 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-127.5 | 127.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-130 | 130 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-132.5 | 132.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-135 | 135 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-137.5 | 137.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-140 | 140 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-142.5 | 142.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-145 | 145 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-147.5 | 147.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-150 | 150 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-152.5 | 152.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-155 | 155 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-157.5 | 157.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-160 | 160 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-162.5 | 162.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-165 | 165 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-167.5 | 167.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-170 | 170 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-172.5 | 172.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-175 | 175 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-177.5 | 177.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-180 | 180 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-182.5 | 182.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-185 | 185 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-187.5 | 187.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-190 | 190 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-192.5 | 192.5 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-195 | 195 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-197.5 | 197.5 | X | X | Discontinued | |
| Mikuni Main Jet | N100.604-200 | 200 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-202.5 | 202.5 | X | X | Discontinued | |
| Mikuni Main Jet | N100.604-205 | 205 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-207.5 | 207.5 | X | X | Discontinued | |
| Mikuni Main Jet | N100.604-210 | 210 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-220 | 220 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-230 | 230 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-240 | 240 | X | X | BUY NOW! | |
| Mikuni Main Jet | N100.604-250 | 250 | X | X | Discontinued | |
| Mikuni 40 PHH / 44 PHH Performance Carburetor - Pilot Jet (Item #28) Sizing | ||||||
| The Mikuni Pilot Jet is used to regulate the fuel from "fully closed" to 20% throttle opening. Two Pilot Jets required per carburetor. | ||||||
 |
||||||
| Mikuni Pilot Jet (Item #28) | N101.043-(Size) | 25-110 | 40PHH | 44PHH | ||
| Mikuni Pilot Jet | N101.043-25 | 25 | X | X | ||
| Mikuni Pilot Jet | N101.043-30 | 30 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-35 | 35 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-40 | 40 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-45 | 45 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-47.5 | 47.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-50 | 50 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-52.5 | 52.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-55 | 55 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-57.5 | 57.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-60 | 60 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-62.5 | 62.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-65 | 65 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-67.5 | 67.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-70 | 70 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-72.5 | 72.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-75 | 75 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-77.5 | 77.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-80 | 80 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-82.5 | 82.5 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-85 | 85 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-90 | 90 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-95 | 95 | X | X | BUY NOW! | |
| Mikuni Pilot Jet | N101.043-100 | 100 | X | X | ||
| Mikuni Pilot Jet | N101.043-105 | 105 | X | X | ||
| Mikuni Pilot Jet | N101.043-110 | 110 | X | X | ||
| Mikuni 40 PHH Performance

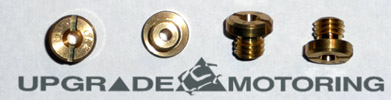

Carburetor - Main AIR Jet (Item #24) Sizing Note: Some Early Mikuni / Solex 40 PHH OEM Carburetor Applications Use Mikuni 44 PHH Performance Carburetor Parts. Please Compare Images/Measurements For Confirmation of Parts Needed Prior to Ordering. |
||||||
| The Mikuni Main Air Jet is designed to meter the amount of air. A change of the main air jet will affect the flow of fuel mainly at medium and high speed driving, resulting in change of output power. This Mikuni 40PHH Air Jet is for use with the 40PHH Jet Block stamped (8). Two Air Jets required per carburetor. | ||||||
 |
||||||
| Mikuni Air Jet 40PHH (Item #24) | B42/56-(Size) | 60-300 (increments of 10) | 40PHH | |||
| Mikuni Air Jet 40PHH | B42/56-60 | 60 | 40 PHH | |||
| Mikuni Air Jet 40PHH | B42/56-70 | 70 | 40 PHH | |||
| Mikuni Air Jet 40PHH | B42/56-80 | 80 | 40 PHH | |||
| Mikuni Air Jet 40PHH | B42/56-90 | 90 | 40 PHH | Discontinued | ||
| Mikuni Air Jet 40PHH | B42/56-100 | 100 | 40 PHH | Discontinued | ||
| Mikuni Air Jet 40PHH | B42/56-110 | 110 | 40 PHH | Discontinued | ||
| Mikuni Air Jet 40PHH | B42/56-120 | 120 | 40 PHH | Discontinued | ||
| Mikuni Air Jet 40PHH | B42/56-130 | 130 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-140 | 140 | 40 PHH | Discontinued | ||
| Mikuni Air Jet 40PHH | B42/56-150 | 150 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-160 | 160 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-170 | 170 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-180 | 180 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-190 | 190 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-200 | 200 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-210 | 210 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-220 | 220 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-230 | 230 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-240 | 240 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-250 | 250 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-260 | 260 | 40 PHH | Discontinued | ||
| Mikuni Air Jet 40PHH | B42/56-270 | 270 | 40 PHH | Discontinued | ||
| Mikuni Air Jet 40PHH | B42/56-280 | 280 | 40 PHH | BUY NOW! | ||
| Mikuni Air Jet 40PHH | B42/56-290 | 290 | 40 PHH | |||
| Mikuni Air Jet 40PHH | B42/56-300 | 300 | 40 PHH | Discontinued | ||
| Mikuni 44 PHH Performance

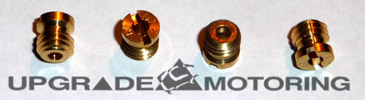

Carburetor - Main AIR Jet (Item #24) Sizing Mikuni 40 PHH / 44 PHH Performance Carburetor Starter Jet (Item #86) Sizing |
||||||
| The Mikuni Main Air Jet is designed to meter the amount of air. A change of the main air jet will affect the flow of fuel mainly at medium and high speed driving, resulting in change of output power. This Mikuni 44PHH Air Jet is for use with the 44PHH Jet Block stamped (OA) or (OB). Two Air Jets required per carburetor. | ||||||
 |
||||||
|
Mikuni
Air Jet 44 PHH (Item ##24) Starter Jet 40PHH/44PHH (Item ##86) |
B42/55-(Size) |
60-100
(increments of 10) 105-205 (Increments of 5) 210-300 (increments of 10) |
44PHH | |||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-60 | 60 | X | |||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-70 | 70 | X | |||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-80 | 80 | X | |||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-90 | 90 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-100 | 100 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-105 | 105 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-110 | 110 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-115 | 115 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-120 | 120 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-125 | 125 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-130 | 130 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-135 | 135 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-140 | 140 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-145 | 145 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-150 | 150 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-155 | 155 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-160 | 160 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-165 | 165 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-170 | 170 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-175 | 175 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-180 | 180 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-185 | 185 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-190 | 190 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-195 | 195 | X | BUY NOW! | ||
| Mikuni Air Jet 44PHH / Mikuni Starter Jet | B42/55-200 | 200 | X | BUY NOW! | ||
| Mikuni Air Jet 44PHH / Mikuni Starter Jet | B42/55-205 | 205 | X | Discontinued | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-210 | 210 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-220 | 220 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-230 | 230 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-240 | 240 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-250 | 250 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-260 | 260 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-270 | 270 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-280 | 280 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-290 | 290 | X | BUY NOW! | ||
| Mikuni Air Jet 44 PHH / Mikuni Starter Jet | B42/55-300 | 300 | X | Discontinued | ||
| Mikuni 40 PHH Performance
Carburetor - Pump Nozzle (Item #67) Sizing Note: For Early Mikuni / Solex PHH Carburetor Applications, please confirm images and measurements, prior to ordering. |
||||||
| The Mikuni Pump Nozzle is designed to regulate the duration of fuel injection at acceleration. Two Pump Nozzles required per carburetor. | ||||||
 |
||||||
| Mikuni Pump Nozzle 40 PHH (Item #67) | N121.033-(0.Size) | 30-60(increments of 5) 60-90 (increments of 10) | 40PHH | |||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.30 | 30 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.35 | 35 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.40 | 40 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.45 | 45 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.50 | 50 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.55 | 55 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.60 | 60 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.70 | 70 | X | Discontinued | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.80 | 80 | X | Discontinued | ||
| Mikuni Pump Nozzle 40 PHH | N121.033-0.90 | 90 | X | |||
| Mikuni 44 PHH Performance
Carburetor - Pump Nozzle (Item #67) Sizing Note: For Early Mikuni / Solex PHH Carburetor Applications, please confirm images and measurements, prior to ordering. |
||||||
| The Mikuni Pump Nozzle is designed to regulate the duration of fuel injection at acceleration..Two Pump Nozzles required per carburetor. | ||||||
 |
||||||
| Mikuni Pump Nozzle 44 PHH (Item #67) | N102.202-(0.Size) | 30-60(increments of 5) 60-90 (increments of 10) | 44PHH | |||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.30 | 30 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.35 | 35 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.40 | 40 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.45 | 45 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.50 | 50 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.55 | 55 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.60 | 60 | X | BUY NOW! | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.70 | 70 | X | Discontinued | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.80 | 80 | X | Discontinued | ||
| Mikuni Pump Nozzle 44 PHH | N102.202-0.90 | 90 | X | Discontinued | ||
| Mikuni Performance Carburetor -
40 PHH and 44 PHH Needle Valve (Item #20) Sizing - 10mm Hex Note: Some Early Mikuni / Solex PHH OEM Carburetor applications use a 14mm Hex Needle valve. Please confirm size prior to ordering. For 14mm Hex Needle Valves, please see Solex 50PHH Replacement Parts Page.Mikuni Solex 50 PHH Parts One Needle Valve required per carburetor. |
||||||
 |
||||||
| Mikuni PHH Needle Valve (Item #20) | N115.037-(Size) | Size - 1.2, 1.5, 1.8, 2.0, 2.5 | 40PHH | 44PHH | ||
| Mikuni Needle Valve | N115.037-1.2 | 1.2 | X | X | BUY NOW! | |
| Mikuni Needle Valve | N115.037-1.5 | 1.5 | X | X | BUY NOW! | |
| Mikuni Needle Valve | N115.037-1.8 | 1.8 | X | X | BUY NOW! | |
| Mikuni Needle Valve | N115.037-2.0 | 2.0 | X | X | BUY NOW! | |
| Mikuni Needle Valve | N115.037-2.5 | 2.5 | X | X | BUY NOW! | |
| Please See Mikuni Solex 50 PHH Parts Page for Needle Valve 14mm Hex Applications | ||||||
Mikuni PHH Carburetor Jet Block Assembly/Emulsion Tube (Item #26) Sizing
|
Mikuni
Jet Block Assembly (Item #26) (Emulsion Tube)
|
Well Dia. | Outlet Hole | Marking | 40PHH | 44PHH | ||
| N101.188 | 5.8 | 6x2.5 & 4x1.5 | (8) | X | BUY NOW! | ||
| N107.240 | 5.8 | 6x2.5 & 4x1.5 | X | 22mm longer than N101.188 Discontinued | |||
| N101.051 | 6.0 | 6x2.5 & 4x1.5 | X | Discontinued | |||
| Well Dia. | Bleed Hole | Marking | 40PHH | 44PHH | |||
| N101.253 | 9.0 | 8x1.0 | (OB) | X | BUY NOW! | ||
| N101.253 | 9.0 | 8x1.2 | (OA) | X | BUY NOW! | ||
| N107.242 | 9.0 | 8x1.0 | (OB) | X | 22mm longer than N101.253 OB Discontinued | ||
| N107.242 | 9.0 | 8x1.2 | (OA) | X | 22mm longer than N101.253 OA Discontinued | ||
| N101.174 | 9.4 | 8x1.0 | (OB) | X | Discontinued | ||
| N101.174 | 9.4 | 8x1.2 | (OA) | X | Discontinued |
Mikuni PHH Carburetor Main Bleed Pipe (Item #25) Sizing
The Mikuni Bleed Pipe is designed to mix the fuel with air as well as to facilitate atomization of the fuel. These Bleed Pipes are used with the Mikuni 40PHH Performance Carburetor Jet Block Assembly - Stamped "8".
| Mikuni Bleed Pipe 40 PHH (Main) (Item #25) | N101.190 | No.1 | No.2 | No.3 | No.4 | No.5 | No.6 | 40PHH | 44PHH | ||
| M | 1.0x2 | 1.2x2 | 1.2x2 | 1.2x2 | X | BUY NOW! | |||||
| N | 1.2x2 | 1.2x2 | 1.3x2 | 1.3x2 | 1.3x2 | 1.3x2 | X | BUY NOW! | |||
| P | 1.2x2 | 1.3x2 | 1.3x2 | 1.3x2 | 1.3x2 | X | Discontinued | ||||
| Q | 1.2x4 | 1.2x4 | 1.2x2 | 1.2x2 | 1.2x2 | X | Discontinued | ||||
| R | 1.2x4 | 1.2x2 | 1.2x2 | X | Discontinued | ||||||
| T | X | BUY NOW! |
Mikuni PHH Carburetor Venturi Sizing - Large and Small (Outer and Inner)
| Mikuni Venturi Large (Item #36) - Also Known as Outer Venturi or Choke.. | N107.013-30 | 30mm ID | X | Discontinued | ||
| N107.013-32 | 32mm ID | X |
Discontinued |
|||
| N107.013-34 | 34mm ID | X | Discontinued | |||
| N121.015-31 | 31mm ID | X | Discontinued | |||
| N121.015-32 | 32mm ID | X | Discontinued | |||
| N107.014-36 | 36mm ID | X | Discontinued | |||
| N107.203-33 | 33mm ID | X | Discontinued | |||
| N107.203-34 | 34mm ID | X | BUY NOW! | |||
| N107.203-35 | 35mm ID | X | Discontinued | |||
| N107.203-37 | 37mm ID | X | BUY NOW! | |||
| N107.233-39 | 39mm ID | X | BUY NOW! | |||
| N107.233-40 | 40mm ID | X | BUY NOW! | |||
| N107.233-41 | 41mm ID | X | BUY NOW! | |||
| Mikuni Venturi Small (Item #35) - Also Known as Inner Venturi. | (I.D.) | (O.D) | ||||
| N101.186 | 8.5 | 14 | X | Discontinued | ||
| N101.119 | 10.5 | 14 | X | Discontinued | ||
| N107.032 | 10.5 | 16 | X | Discontinued | ||
| N121.106 | 12.0 | 16 | X | Discontinued | ||
| N101.205 | 10.5 | 14 | X | BUY NOW! | ||

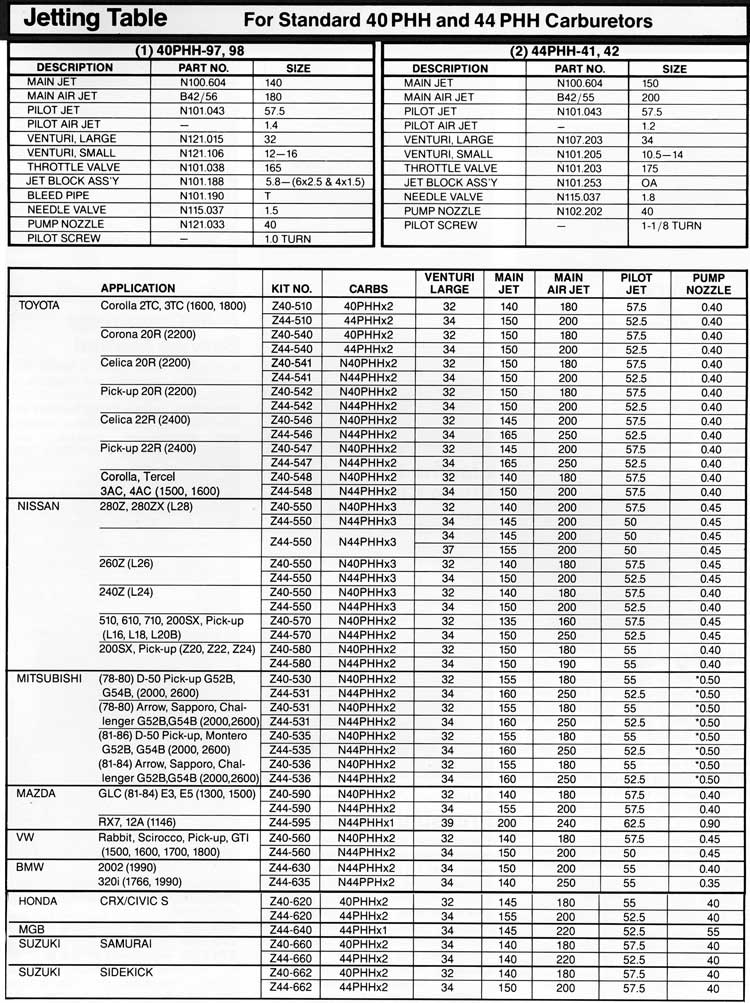

Mikuni 40 PHH and 44 PHH Side Draft Carburetor Jetting Size Recommendation Table
The following list of Mikuni Performance Carburetor recommended settings applies only to Mikuni PHH kits installed on otherwise stock engines. Should the PHH carburetor kit be used in combination with ANY other engine modifications, such as a different cam or the installation of headers, each modification may then require a different setting.
We Ship Mikuni PHH Carburetor Parts Worldwide!! We Have Thousands of Genuine Mikuni Performance Carburetor Parts in Stock!!
You Can Now Use www.MikuniParts.com to Access Our Mikuni and Mikuni Solex PHH 40, PHH 44, PHH 50 Parts Page Quickly!
Upgrade Motoring
Tel:
(818) 998-6005 Fax: (818) 998-6006
E-mail
M-F
10:00 - 6:00 PM PST
Please Call 818.998.6005 to Place Your Orders or To Get Our Current Sale Pricing!
www.upgrademotoring.com -
www.shop.upgrademotoring.com
©
Copyright
2009-2016 Upgrade Motoring,
All rights reserved
